ISO 15552 Steel

ISO VDMA MF1 - black

Order code: 0008 bis / diam.

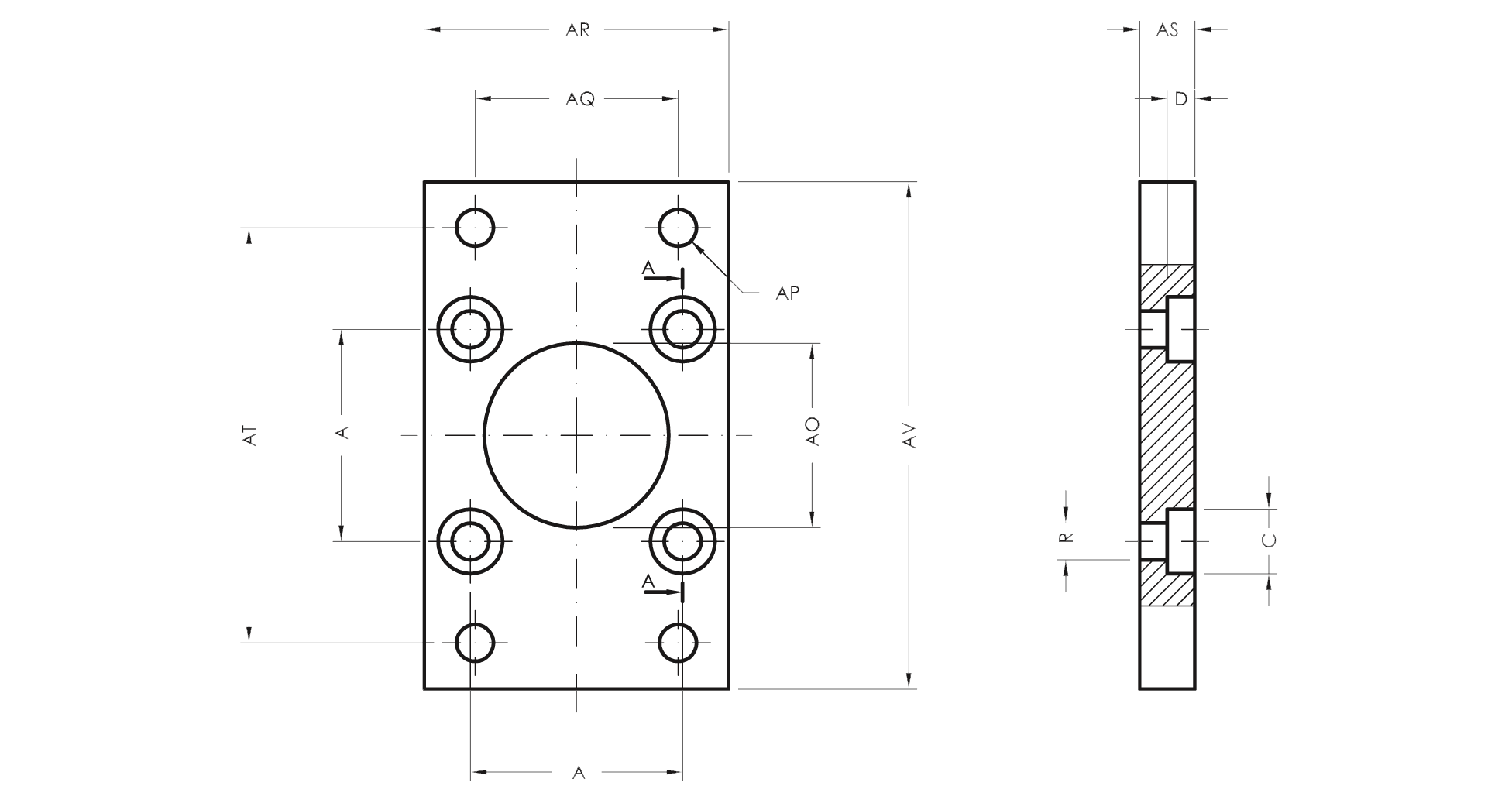

Product structure

Data sheet

Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Nickel-plating
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320

This type of ISO VDMA MF1/MF2 flange is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Technical Specifications: the male hinge can be sold in two different variants

  • 0008BIS | With spot facing (different depth of head and body of DIN 912 screws) | ASTM A-105 STEEL
  • IN08BIS | With spot facing (different depth of head and body of DIN 912 screws) | AISI 316 STEEL

Field of use: the ISO VDMA MF1/MF2 flange is used for ISO 15552 cylinder/actuator assembly. It is intended to be mounted on both the front and rear of the cylinder. It must remain in contact with the rear and front hinges.
The ISO VDMA MF1/MF2 flange is fixed to the head and tail of the cylinder with 4 screws and 4 through holes for your cylinder rods.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: the ISO MF1/MF2 flange can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
