Smooth Flange

Order code: 0080 / diam.

Product structure

Data sheet

Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Nickel-plating

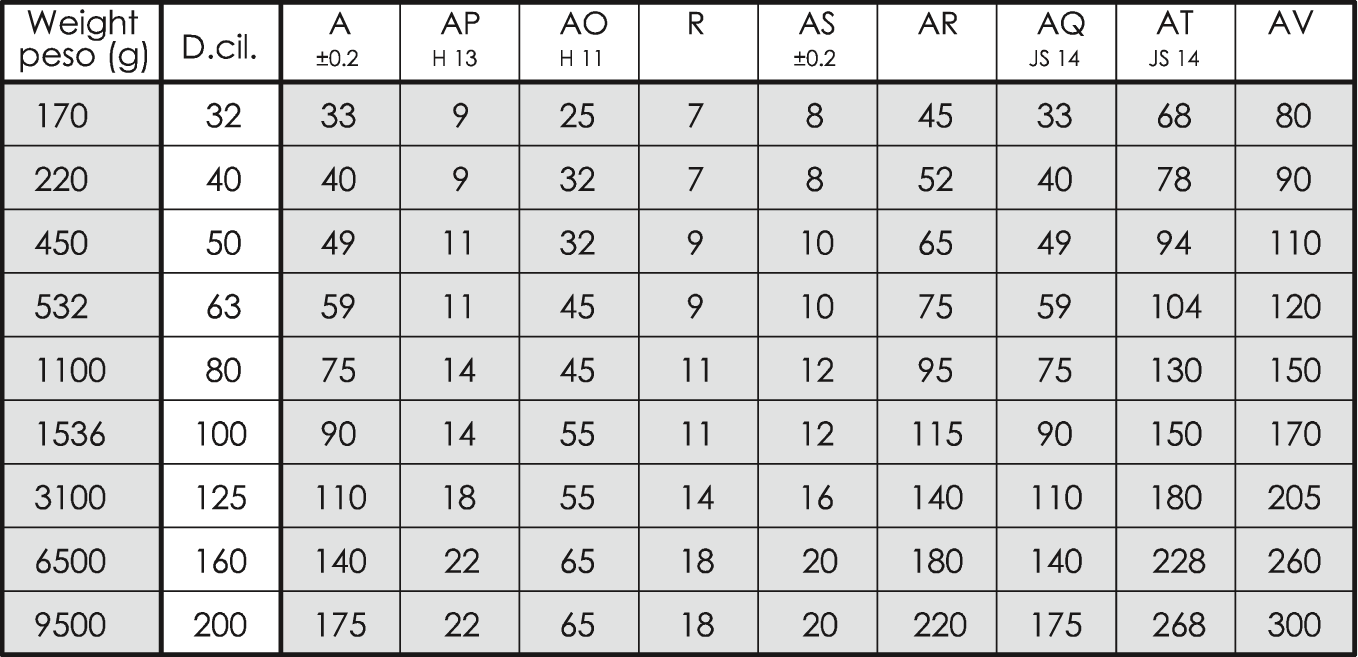

Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200

This type of CNOMO smooth flange is made in order to comply with the CNOMO reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

Technical Specifications: the male hinge can be sold in two different variants

  • 0080    Pass-through
  • 0022    Without spot facing
  • 0028     With spot facing (different depth of head and body of DIN 912 screws)

Field of use: the CNOMO smooth flange is used for the assembly of pneumatic cylinders/actuators that refer to the CNOMO standard. It is intended to be mounted on both the front and rear of the cylinder. It must remain in contact with the rear and front hinges.
The CNOMO smooth flange is fixed to the head and tail of the cylinder with 8 through holes for your cylinder rods.

Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.

Customisation: the CNOMO threaded flange can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
