Order code: 0038 / diam.
Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising

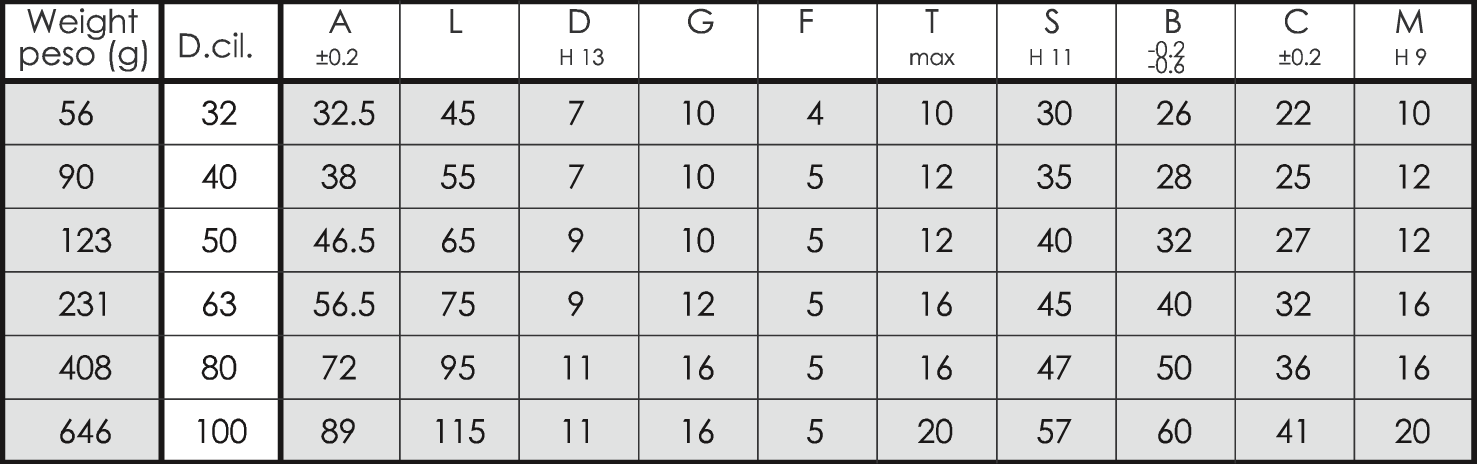

Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100
This type of rear male hinge is made in order to comply with the ISO 6431 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Technical Specifications: The male hinge is sold with the following code:
- 0038 | Without Bushings
Field of use: the male hinge is used for ISO 6431 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The female hinge is fixed to the cylinder with 4 screws and works in combination with our male hinge (see our article 0038).
Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 6431 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.
Customisation: the MP4 rear male hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components (bushings), packaging.
